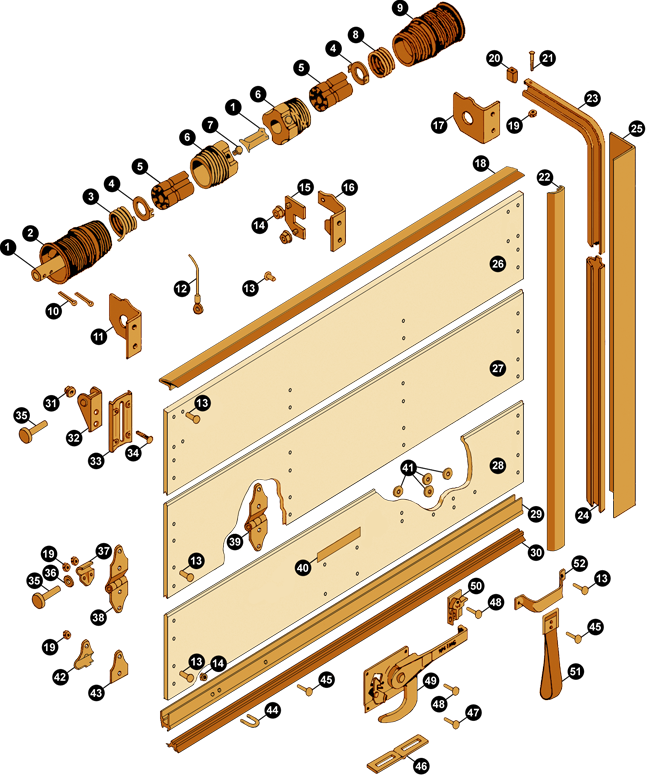

THE DryFREIGHT Door PARTS

#	Part Number	Description
1	2528.XX	Shaft for 2376 balancer (specify length)
2	2547	Roadside cable drum & bearing assembly
3	2704.XXX.XX	Roadside spring, 2 3/16" ID (specify gauge & length)
4	2522	Thrust washer
5	2471	Spring spacer
6	2518	Winding cone with universal thread (incl #7)
7	2699	Set screw
8	2705.XXX.XX	Curbside spring, 2 3/16" ID (specify gauge & length)
9	2548	Curbside cable drum & bearing assembly
--	2376.XXX.XX.XXX	Complete balancer assembly (#1 - #9) (specify length and spring info)
10	10.1009.8	Cotter pin (3/16" x 1 1/2")
11	2524	Roadside 2376 balancer bracket
12	1.XXX	Stainless steel cable with 5/16" eye (specify length)
13	10.1002.3	Rivet (1/4" x 1, 3/4" HD)
13alt	10.1003.8	Step bolt (1/4" - 20 x 1 1/4")
14	10.1033.2	Torque nut (5/16" - 18)
15	2526	Clamp assembly with studs
16	2525	Center 2376 balancer bracket
17	2523	Curbside 2376 balancer bracket
18	4032.98	Top seal assembly, 98" long
19	10.1022.1	Keps nut (1/4" - 20)
20	83	2" rubber track stop bumper
21	10.1010.3	Hex head cap screw (1/4" - 20 x 2 1/2")
22	5377.XXX	Optional dual durometer side seal for 1/2" spacing (specify length)
23	11.XXXX	2" horizontal track (specify length, radius, Curbside/Roadside)
24	1031.XXXXX	2" vertical track (specify length, Roadside/Curbside)
25	61.XXXXX	2 1/4" mounting angle (specify length)
26	340.XXX	Top DryFREIGHT™ panel only (specify height & width)
27	342.XXX	Intermediate DryFREIGHT™ panel (specify height & width)
28	343.XXX	DryFREIGHT™ bottom panel only (specify height & width)

#	Part Number	Description
--	345.XXX	DryFREIGHT™ bottom panel with seal & channel (specify height & width)
--	348.XXX	Complete DryFREIGHT™ bottom panel with all hardware (specify height & width)
29	8280.96	Beveled aluminum bottom U-channel, 96" long
30	5735.96	Bottom seal, 96"
31	10.1063.1	Serrated flange lock nut (5/16" - 18)
32	6943	Top closure slide
33	1264	Top closure base bracket (incl. #31, #34)
34	10.1005.9	Bolt (5/16" x 5/8")
--	6944	Complete top closure assembly (incl #32, #33)
35	3228	2" nylon tread roller with 3" shaft
35alt	2996	2" enclosed bearing steel roller with 3" shaft
36	6	Spacer washer
37	1208	Roller hinge cover clamp
38	1207	Roller hinge
--	1209	Complete roller hinge assembly (incl. #19, #37, #38)
39	15	Center hinge
40	808	"Do not move..." decal
41	10.1006.1	Flat washer (1/4" x 3/4")
42	1021	Bottom roller shaft cover
43	1370	Bottom roller stud plate
--	1371	Complete bottom roller bracket (incl #19, #42, #43)
44	70.13	1 1/4" u-bolt
45	10.1002.11	Plated rivet (1/4" x 1 1/8", 3/4" HD)
46	2804.0	Latch plate
46alt	2804.1	Stainless steel latch plate
47	10.1002.9	Rivet (1/4" x 1 5/16", 1/2" HD)
48	10.1002.36	Rivet (1/4" x 1 1/8")
49	77	Standard outside cam lock
50	7515	Handle keeper assembly for #49
51	9723.XX	Pull down strap (specify length)
52	1715.00	Grab handle
